Hafele Free Fold

Key Specifications / Selection Table

Model / Series	Cabinet Height Range (mm)	Flap / Front Weight (kg)	Article No. (372.38)
C3fo	480 – 530	5.2 – 11.1	372.38.102
C4fo	480 – 530	7.8 – 16.3	372.38.103
D3fo	520 – 590	4.8 – 10.3	372.38.105
D4fo	520 – 590	7.2 – 15.2	372.38.106
D5fo	520 – 590	11.8 – 24.5	372.38.104
E3fo	580 – 650	4.3 – 9.2	372.38.107
E4fo	580 – 650	6.5 – 13.5	372.38.108
F3fo	650 – 730	3.9 – 8.3	372.38.109
F4fo	650 – 730	5.8 – 12.2	372.38.110
G4fo	710 – 790	5.3 – 11.1	372.38.111
G5fo	710 – 790	8.7 – 18.0	372.38.112
H4fo	770 – 840	4.9 – 10.3	372.38.113
H5fo	770 – 840	8.0 – 16.7	372.38.114
I5fo	840 – 910	7.3 – 15.3	372.38.115
J5fo	910 – 970	6.8 – 14.2	372.38.116
K5fo	960 – 1010	6.5 – 13.5	372.38.117
K6fo	960 – 1010	8.6 – 17.3	372.38.118
L5fo	1000 – 1040	6.2 – 12.9	372.38.100

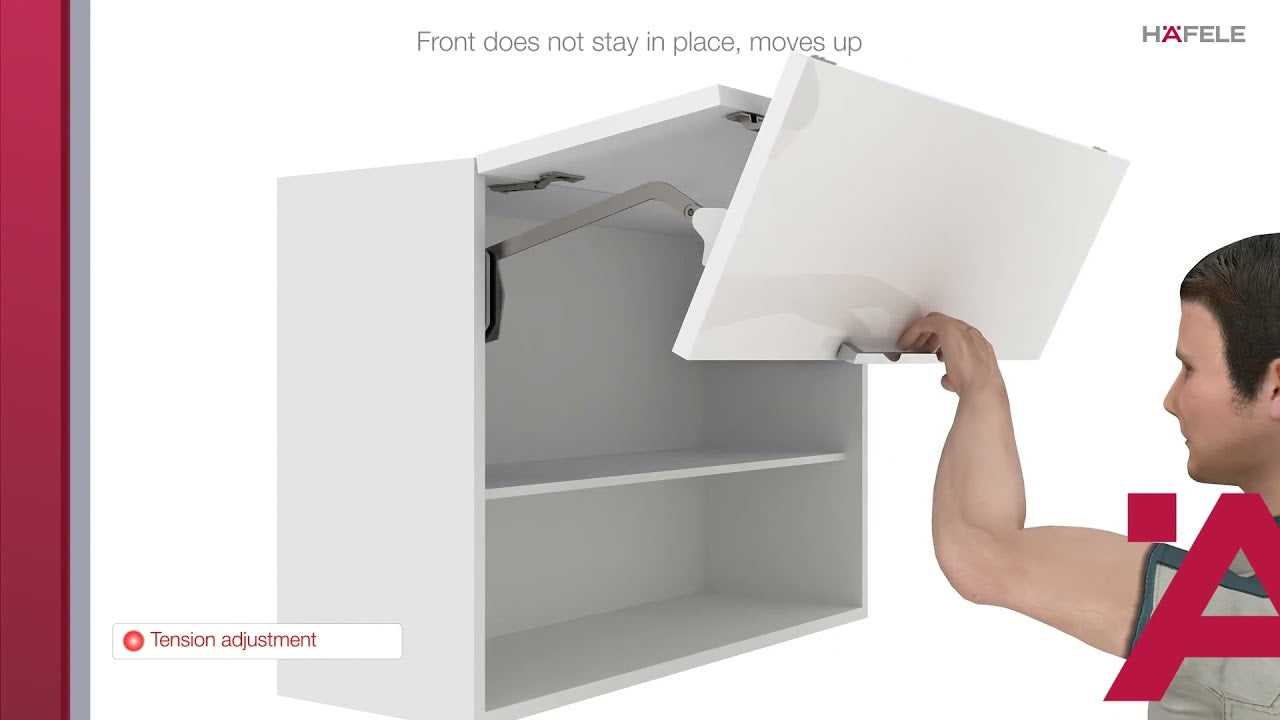

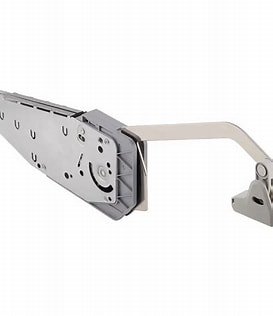

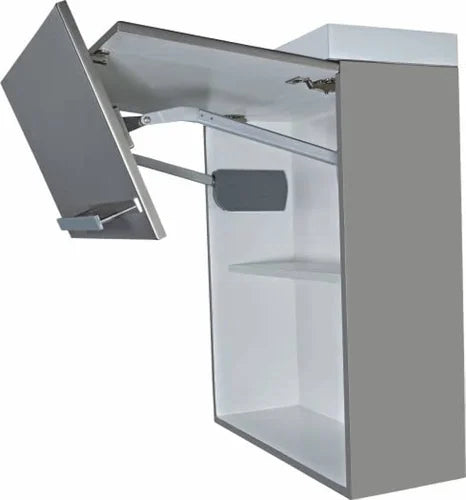

The Free Fold series is a double‑flap lift / flap folding fitting by Häfele. It’s designed for overhead cabinets (wall cabinets) where a front panel is split into two equal halves (1:1 division) that fold upward together.
There is a variant called Free Fold Short (abbreviated “FS”) suited when cabinet height is lower — so the mechanism is more compact.
